Populate
User Attributes to User Resource Accounts Using Process Definition Tasks.
Attributes from OIM User Profile to user resource accounts
Steps.
OIM User Attribute:
TelePhoneNumber
LDAP User Process Form Field: First Name

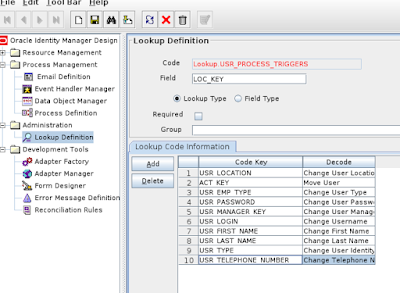

1. Log in to
Design Console and Navigate to Administration -> Lookup Definition
Expand Administration and double
click Lookup Definition.
2. In the
Code input box, type Lookup.USR_PROCESS_TRIGGERS, and then query for lookup
definition by clicking the binocular icon.
Add an entry to the lookup definition, and then save.
For the Code Key column, specify the column name from the
USR table that is in the OIM Schema.
For the Decode column, specify the name of the process task
that is responsible for passing the user attribute to a specific process form
field on a resource.
For example: Code Key: USR_TELEPHONE_NUMBER
Decode: Change Telephone Number
3. Create
Process Task For the Process Form.
Expand Process Management, and double click Process
Definition.
4. Create a
process task using the name you specified in Lookup.USR_PROCESS_TRIGGERS.
For the new process task, you will use the adapter you
created in the previous section, and then define the mapping to pass a specific
user attribute onto a specific process form field.
On the Creating New Task dialog box, specify the following
information in the General tab:
Task Name: {Decode value for attribute defined in
Lookup.USR_PROCESS_TRIGGERS}
Description: Propagates the {USR_ATTRIBUTE} change performed
on the OIM User profile to the {PROCESS_FORM_FIELD} field of the process form.
Task Properties: Conditional, Required for Completion, Allow
Cancellation while Pending, and Allow Multiple Instances.
5. Update User form
field and OIM will then call the corresponding "updated" process task
for the process form field being updated in order to propagate the change to
the target system.
